SURVEILLANCE & MANUFACTURING in KOREA
INDOOR DOME Camera
Analogue HD 2 MP, 4 MP and 8 MP cameras in Special Indoor Plastic Housing.
Our indoor dome cameras are available in two models: Ø100mm dome cover and Ø80mm dome cover.

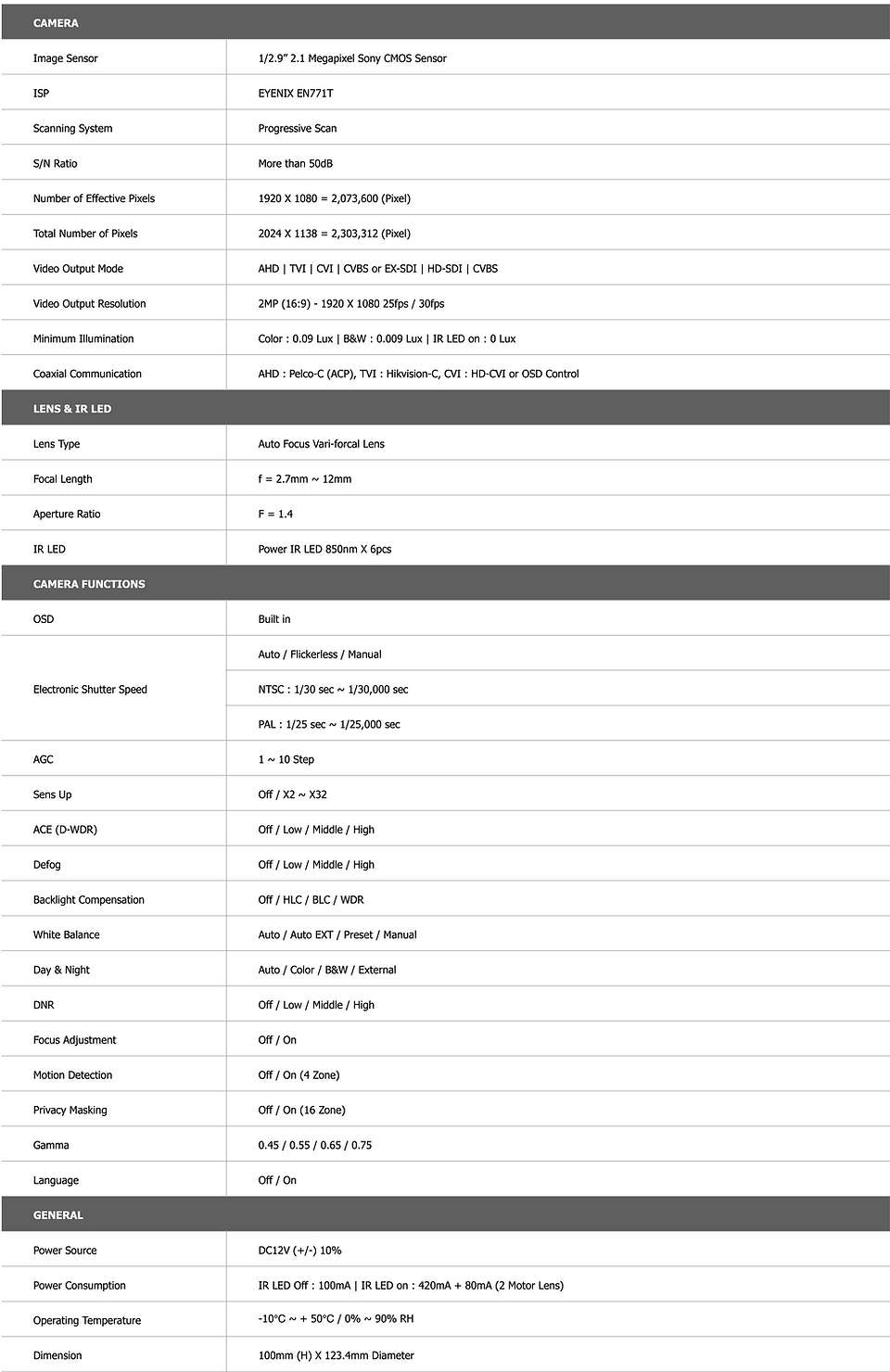

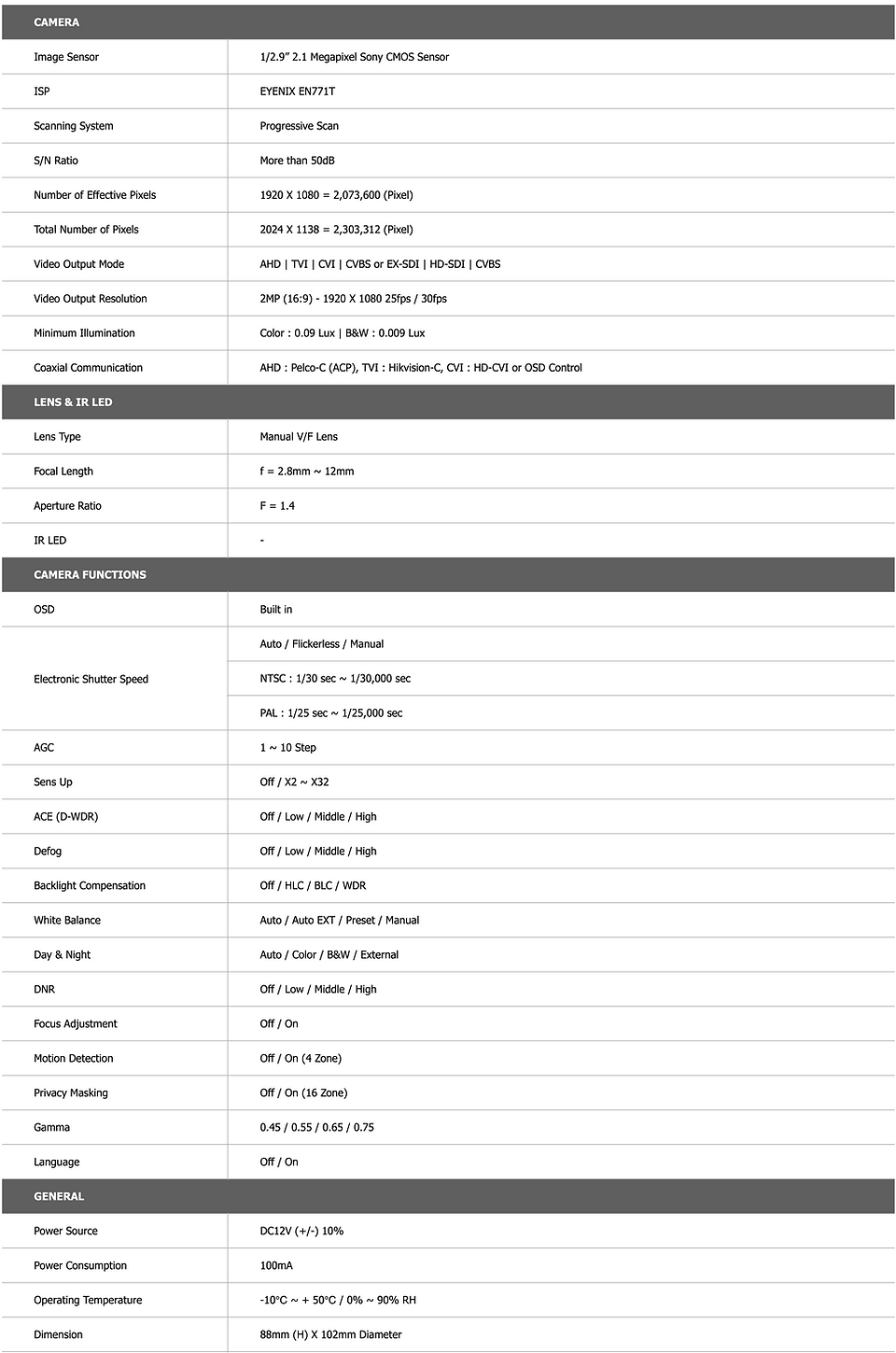

The Ø100mm dome is equipped with a motorized lens, while the Ø80mm dome features a manual varifocal lens. Both housings are designed to fit well in various installation spaces. The choice of housing depends on the size of the space. Both models achieve the dual objectives of enhancing spatial aesthetics and providing security.
2 MEGAPIXEL
SDPBA-1E71D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.9" Sony STARVIS CMOS Sensor (IMX307)
EN771T
More than 50dB
Progressive Scan
1920 x 1080 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
AHD : Pelco-C(ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.09 Lux | B&W : 0.009 Lux
External Input : DC 12V +/- 10%
4 MEGAPIXEL
SDPBA-1G81D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
EN781
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C(ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.1 Lux | B&W : 0.01 Lux
DC 12V +/- 10%
SDPBA-1M83D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/1.8" 5.14 MP Sony STARVIS II CMOS Sensor (IMX664)
EN781F
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.005 Lux | B&W : 0.0001 Lux
DC 12V +/- 10%
8 MEGAPIXEL
SDPBA-1L81D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" 8.40 MP Sony STARVIS CMOS Sensor (IMX515)
EN781
More than 50dB
Progressive Scan
3840 x 2160 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.07 Lux | B&W : 0.007 Lux
DC 12V +/- 10%
2 MEGAPIXEL | IR LED
SDPBA-1E71D6T
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.9" Sony STARVIS CMOS Sensor (IMX307)
EN771T
More than 50dB
Progressive Scan
1920 x 1080 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C(ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.09 Lux | B&W : 0.009 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
4 MEGAPIXEL | IR LED
SDPBA-1G81D6T
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.9" Sony STARVIS CMOS Sensor (IMX335)
EN781
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.1 Lux | B&W : 0.01 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
4 MEGAPIXEL | NIGHT VISION | IR LED
SDPBA-1M83D6T
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/1.8" 4.16 MP Sony STARVIS II CMOS Sensor (IMX664)
EN781F
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.005 Lux | B&W : 0.0001 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
8 MEGAPIXEL | IR LED
SDPBA-1L81D6T
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX515)
EN781
More than 50dB
Progressive Scan
3840 x 2160 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.07 Lux | B&W : 0.007 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
2 MEGAPIXEL
SDPMC-1E71D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.9" Sony STARVIS CMOS Sensor (IMX307)
EN771T
More than 50dB
Progressive Scan
1920 x 1080 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C(ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.09 Lux | B&W : 0.009 Lux
DC 12V +/- 10%
4 MEGAPIXEL
SDPMC-1G81D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
EN781
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C(ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.1 Lux | B&W : 0.01 Lux
DC 12V +/- 10%
4 MEGAPIXEL | NIGHT VISION
SDPMC-1M83D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/1.8" 5.14 MP Sony STARVIS II CMOS Sensor (IMX664)
EN781F
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.005 Lux | B&W : 0.0001 Lux
DC 12V +/- 10%
8 MEGAPIXEL
SDPMC-1L81D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" 8.40 MP Sony STARVIS CMOS Sensor (IMX515)
EN781
More than 50dB
Progressive Scan
3840 x 2160 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.07 Lux | B&W : 0.007 Lux
DC 12V +/- 10%
2 MEGAPIXEL | IR LED
SDPMC-1E71D24T
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.9" Sony STARVIS CMOS Sensor (IMX307)
EN771T
More than 50dB
Progressive Scan
1920 x 1080 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C(ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.09 Lux | B&W : 0.009 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
4 MEGAPIXEL | IR LED
SDPMC-1G81D24T
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
EN781
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.1 Lux | B&W : 0.01 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
4 MEGAPIXEL | NIGHT VISION | IR LED
SDPMC-1M83D24T
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/1.8" 4.16 MP Sony STARVIS II CMOS Sensor (IMX664)
EN781F
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.005 Lux | B&W : 0.0001 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
8 MEGAPIXEL | IR LED
SDPMC-1L81D24T
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX515)
EN781
More than 50dB
Progressive Scan
3840 x 2160 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.07 Lux | B&W : 0.007 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
