OUTDOOR DOME Camera
Analogue HD 2 MP, 4 MP and 8 MP cameras in Special Vandalproof and Waterproof Housing.
We offer a variety of housing sizes, including Ø100mm, Ø80mm, and Ø65mm.
Depending on the size, we apply motorized lenses, manual varifocal lenses, or fixed lenses. These housings continue to be highly popular due to its ease of installation and elegant design, even after many years.
100mm Diameter Dome Series
80mm Diameter Dome Series with IR LED
64mm Diameter Dome Series
64mm Diameter Dome Series with IR LED
SDVBB-1D71D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.9" Sony STARVIS CMOS Sensor (IMX323)
EN771T
More than 50dB
Progressive Scan
1920 x 1080 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C(ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.09 Lux | B&W : 0.009 Lux
DC 12V +/- 10%
SDVBB-1G81D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
EN781
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.1 Lux | B&W : 0.01 Lux
DC 12V +/- 10%
SDVBB-1M83D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/1.8" 5.14 MP Sony STARVIS II CMOS Sensor (IMX664)
EN781F
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.005 Lux | B&W : 0.0001 Lux
DC 12V +/- 10%
SDVBB-1L81D
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" 8.40 MP Sony STARVIS CMOS Sensor (IMX664)
EN781
More than 50dB
Progressive Scan
3840 x 2160 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.07 Lux | B&W : 0.007 Lux
DC 12V +/- 10%
SDVMC-1D71D24T
CAMERA TYPE
OUTDOOR DOME Camera
HOUSING
Aluminium Die Casting
SENSOR
1/2.9" Sony STARVIS CMOS Sensor (IMX323)
LENS TYPE
2.8–12mm Manual V/F Lens
IR LED
24pcs
POWER CONSUMPTION
IR LED Off : 100mA | IR LED On : 300mA
VIDEO OUTPUT
AHD TVI CVI CVBS
HD-SDI EX-SDI
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.9" Sony STARVIS CMOS Sensor (IMX323)
EN771T
More than 50dB
Progressive Scan
1920 x 1080 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C(ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.09 Lux | B&W : 0.009 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
SDVMC-1G81D24T
CAMERA TYPE
OUTDOOR DOME Camera
HOUSING
Aluminium Die Casting
SENSOR
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
LENS TYPE
2.8–12mm Manual V/F Lens
IR LED
24pcs
POWER CONSUMPTION
IR LED Off : 150mA | IR LED On : 350mA
VIDEO OUTPUT
AHD TVI CVI CVBS
EX-SDI CVBS
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
EN781
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.1 Lux | B&W : 0.01 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
SDVMC-1M83D24T
CAMERA TYPE
OUTDOOR DOME Camera
HOUSING
Aluminium Die Casting
SENSOR
1/1.8" Sony STARVIS CMOS Sensor (IMX664)
LENS TYPE
2.8–12mm Manual V/F Lens
IR LED
24pcs
POWER CONSUMPTION
IR LED Off : 160mA | IR LED On :360mA
VIDEO OUTPUT
AHD TVI CVI CVBS
EX-SDI CVBS
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/1.8" 4.16 MP Sony STARVIS II CMOS Sensor (IMX664)
EN781F
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.005 Lux | B&W : 0.0001 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
SDVMC-1L81D24T
CAMERA TYPE
OUTDOOR DOME Camera
HOUSING
Aluminium Die Casting
SENSOR
1/2.8" Sony STARVIS CMOS Sensor (IMX515)
LENS TYPE
2.8–12mm Manual V/F Lens
IR LED
24pcs
POWER CONSUMPTION
IR LED Off : 180mA | IR LED On : 380mA
VIDEO OUTPUT
AHD TVI CVI CVBS
EX-SDI CVBS
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX515)
EN781
More than 50dB
Progressive Scan
3840 x 2160 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.07 Lux | B&W : 0.007 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
SDVFE-1D71D12T
CAMERA TYPE
OUTDOOR DOME Camera
HOUSING
Aluminium Die Casting
SENSOR
1/2.9" Sony STARVIS CMOS Sensor (IMX323)
LENS TYPE
3.6mm Fixed Lens
IR LED
12pcs
POWER CONSUMPTION
IR LED Off : 100mA | IR LED On : 300mA
VIDEO OUTPUT
AHD TVI CVI CVBS
HD-SDI EX-SDI
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.9" Sony STARVIS CMOS Sensor (IMX323)
EN771T
More than 50dB
Progressive Scan
1920 x 1080 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C(ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.09 Lux | B&W : 0.009 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
SDVFE-1G81D12T
CAMERA TYPE
OUTDOOR DOME Camera
HOUSING
Aluminium Die Casting
SENSOR
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
LENS TYPE
3.6mm Fixed Lens
IR LED
12pcs
POWER CONSUMPTION
IR LED Off : 150mA | IR LED On : 350mA
VIDEO OUTPUT
AHD TVI CVI CVBS
EX-SDI CVBS
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
EN781
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.1 Lux | B&W : 0.01 Lux | IR LED On : 0 Lux
DC 12V +/- 10%
SDVFE-1L81D12T
CAMERA TYPE
OUTDOOR DOME Camera
HOUSING
Aluminium Die Casting
SENSOR
1/2.8" Sony STARVIS CMOS Sensor (IMX515)
LENS TYPE
3.6mm Fixed Lens
IR LED
12pcs
POWER CONSUMPTION
IR LED Off : 180mA | IR LED On : 380mA
VIDEO OUTPUT
AHD TVI CVI CVBS
EX-SDI CVBS
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX515)
EN781
More than 50dB
Progressive Scan
3840 x 2160 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.07 Lux | B&W : 0.007 Lux | IR LED On : 0 Lux
DC 12V +/- 10%

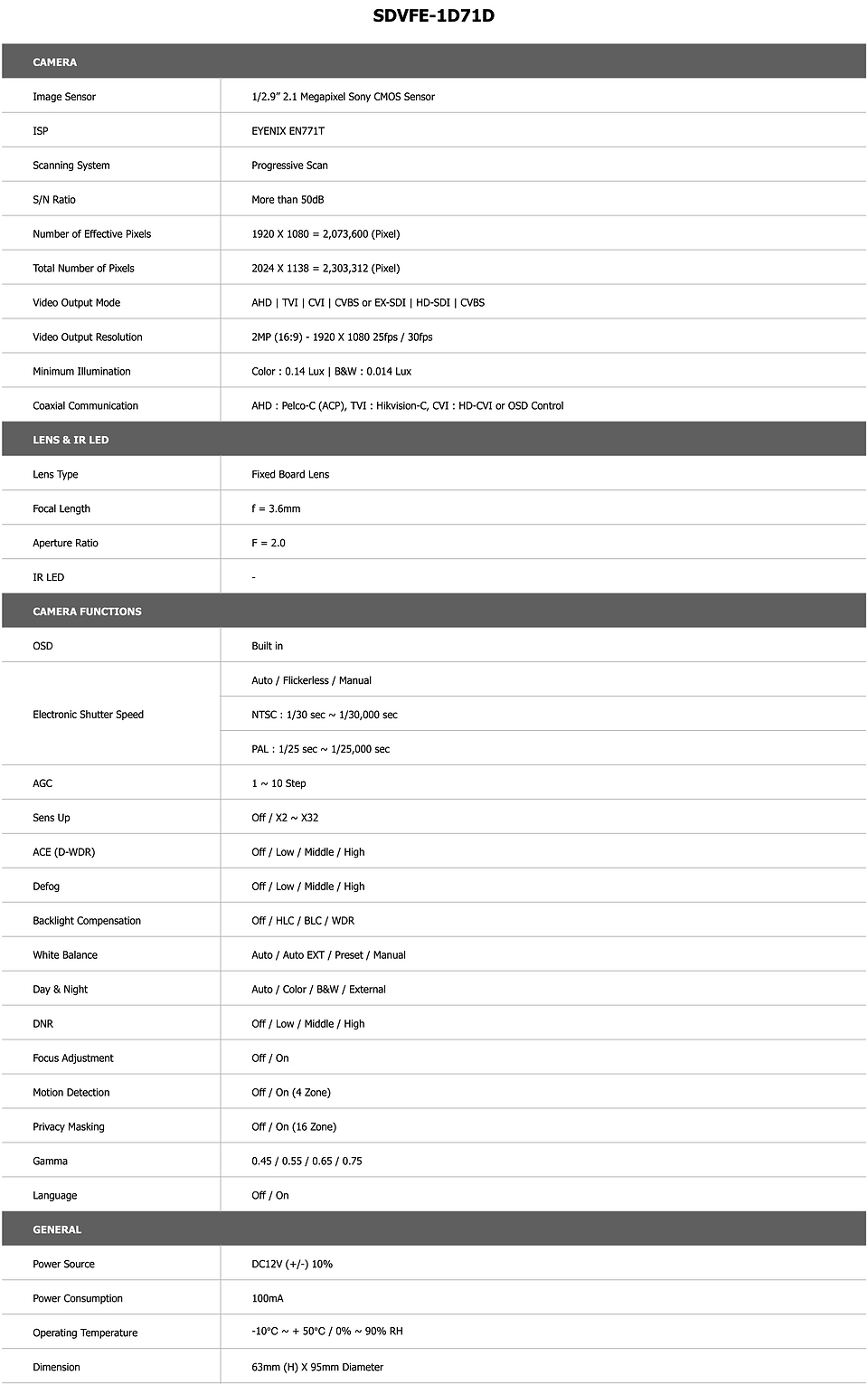

SDVFE-1D71D
CAMERA TYPE
OUTDOOR DOME Camera
HOUSING
Aluminium Die Casting
SENSOR
1/2.9" Sony STARVIS CMOS Sensor (IMX323)
LENS TYPE
3.6mm Fixed Lens
IR LED
-
POWER CONSUMPTION
100mA
VIDEO OUTPUT
AHD TVI CVI CVBS
HD-SDI EX-SDI
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.9" Sony STARVIS CMOS Sensor (IMX323)
EN771T
More than 50dB
Progressive Scan
1920 x 1080 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
HD-SDI | EX-SDI | CVBS
AHD : Pelco-C(ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.09 Lux | B&W : 0.009 Lux
DC 12V +/- 10%
SDVFE-1G81D
CAMERA TYPE
OUTDOOR DOME Camera
HOUSING
Aluminium Die Casting
SENSOR
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
LENS TYPE
3.6mm Fixed Lens
IR LED
-
POWER CONSUMPTION
150mA
VIDEO OUTPUT
AHD TVI CVI CVBS
EX-SDI CVBS
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
EN781
More than 50dB
Progressive Scan
2560 x 1440 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.1 Lux | B&W : 0.01 Lux
DC 12V +/- 10%
SDVFE-1L81D
CAMERA TYPE
OUTDOOR DOME Camera
HOUSING
Aluminium Die Casting
SENSOR
1/2.8" Sony STARVIS CMOS Sensor (IMX515)
LENS TYPE
3.6mm Fixed Lens
IR LED
-
POWER CONSUMPTION
180mA
VIDEO OUTPUT
AHD TVI CVI CVBS
EX-SDI CVBS
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX515)
EN781
More than 50dB
Progressive Scan
3840 x 2160 @ 25/30 fps | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
EX-SDI | CVBS
AHD : Pelco-C (ACP) | TVI : Hikvision-C | HD-CVI or OSD Control
Color : 0.07 Lux | B&W : 0.007 Lux
DC 12V +/- 10%
