Pluged In,

IP Lipstick Camera

The 2MP IP Lipstick Camera is designed with an advanced 1/2.8-inch progressive scan imager and a high-performance NDAA-compliant SoC, ensuring excellent image quality and reliable operation. Equipped with a 3.6mm fixed lens, it delivers a balanced field of view suitable for a wide range of surveillance applications. Housed in one of the industry’s smallest bullet-style enclosures, this compact camera combines discreet appearance with robust functionality, making it an ideal choice for installations where both performance and space efficiency are critical.

IP Camera plug in.png

Compact All-Purpose IP Camera

  • Suitable for both outdoor and indoor usages

  • Environments with dust, dirt, rain, and snow

  • Diameter: ​Ø20.8mm Only

  • Length: 78.9mm (Body)

  • IP Network Camera

  • DC 12V & PoE (Dongle)

  • OSD Menu Joystick

  • Camera Control Software

  • Robust Aluminium Die Casting Housing.

  • 3.6mm Fixed Lens

  • SD Card Slot

Mini Bullet IP Camera Housing Drawing - SNM Technology

Technical Specifications

  • 1/2.8 inches Sony STARVIS CMOS Sensor

  • Total Pixels: 1945 x 1109 (2.16 MP)

  • Active Pixels: 1920 x 1080 (2.07 MP)

  • Progressive Scan

  • Full HD 1080p @ 30 fps

  • H.265, H.264, MJPEG

  • IP Network

  • Web Server Built-in

  • 3DNR

  • DOL True WDR

  • ONVIF Compatibility

  • PoE Support


NT98566 (NOVATEK)

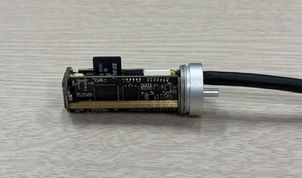

Mini Bullet IP Camera - SNM Technology

Dust Resistance
Liquid Resistance

IP 66

  • 2 MP

  • Ø20.8mm x 79mm (L)

  • Aluminium Die Casting Case

  • 3.6mm Fixed Board Lens

  • 1/2.8" Sony STARVIS CMOS Sensor

  • Progressive Scan (16: 9)

  • Total Pixels : 1945 x 1109 (2.16 MP)

  • Effective Pixels : 1920 x 1080 (2.07 MP)

  • Full HD 1080p / HD720p @ 30 fps

  • IP NETWORK - Video Output

  • 2DNR / 3DNR

  • DOL HDR (Digital Over Lab High Dynamic Range)

  • WDR / DWDR

  • DC 12V & PoE - Power Source

  • Audio Input / Output (Optional)

  • Supports ONVIF

❖ NOTE

  • Easy Installation with any NVRs

  • Optional microSD card support
