Indoor Dome Camera

SDPBA-1E66E6T

IP Dome Camera - SNM Technology

★★★★★★

❖ OVERVIEW

This indoor dome camera is a standard 2 megapixel model.
The transparent Dome Cover is Ø100mm. Its housing combines an aesthetically refined design with a non-reflective surface that minimizes glare and unwanted light reflections. This enhances image clarity and prevents interference, making it suitable for both indoor and outdoor surveillance applications.

It is equipped with an NDAA/TAA compliant SoC and a Sony IMX307 sensor.
The motorized varifocal lens provides installation flexibility, with a focal length adjustable between 2.7–13.5mm.
Equipped with high-performance Power IR LEDs (6pcs), the camera ensures superior night vision with an extended infrared range.

2MP
NDAA
TAA
H.265
IP Camera
WDR
Varifocal Lens
100pi Dome Cover Housing
Power IR LED 6pcs
ONVIF
PoE

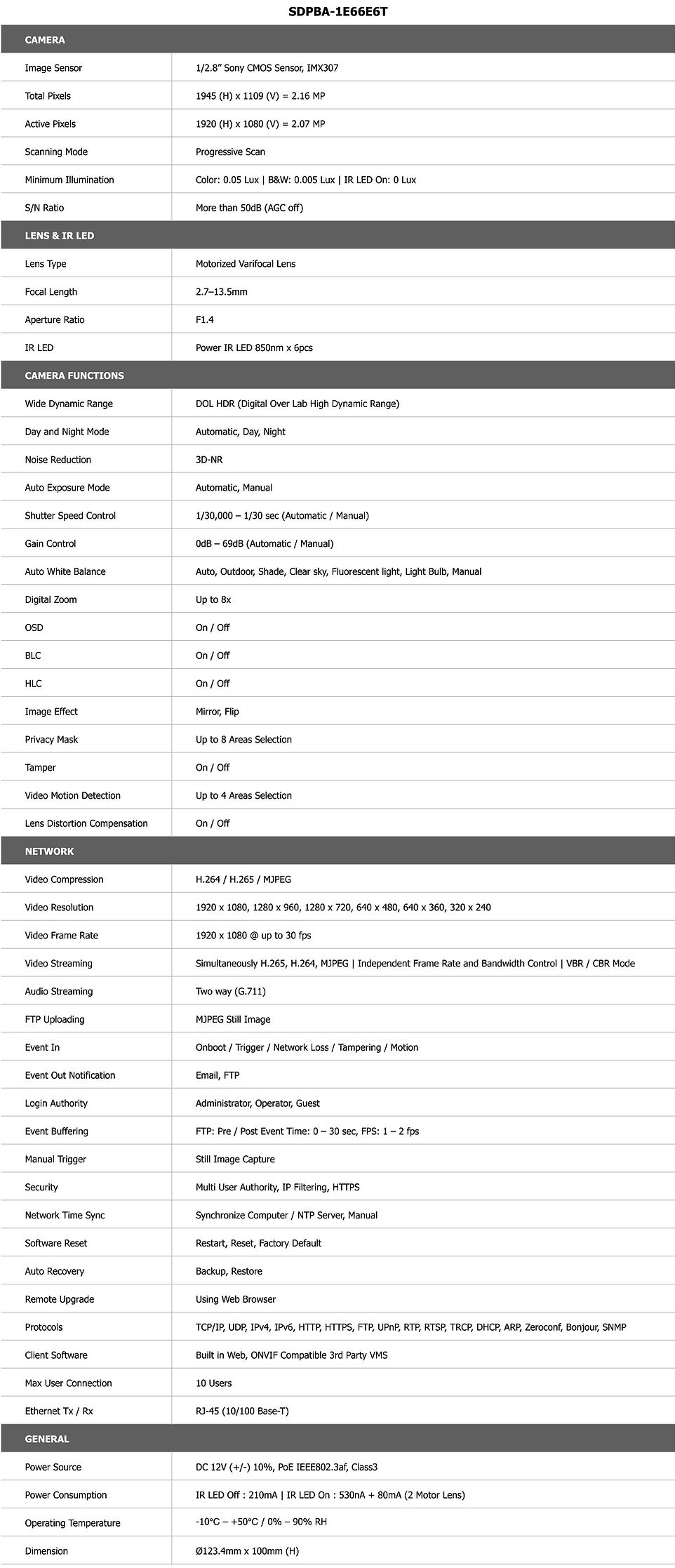

  • 2 MP

  • Ø100mm Transparent Dome Cover

  • Plastic Housing

  • 2.7–13.5mm Motorized Varifocal Lens

  • 6pcs POWER IR LEDs

  • 1/2.8" Sony STARVIS CMOS Sensor

  • Progressive Scan (16: 9)

  • Total Pixels: 1945 x 1109 (2.16 MP)

  • Effective Pixels: 1920 x 1080 (2.07 MP)

  • Full HD 1080p / HD720p @ 30 fps

  • IP NETWORK - Video Output

  • 2DNR / 3DNR

  • DOL HDR (Digital Over Lab High Dynamic Range)

  • WDR / DWDR

  • DC 12V & PoE - Power Source

  • Audio Input / Output (Optional)

  • Supports ONVIF

❖ NOTE

  • Easy Installation with any NVRs

  • Option: 6–22mm Motorized Varifocal Lens

  • Option:  24pcs Conventional IR LEDs

POWER IR LED

IP Dome Camera with Power IR LED - SNM Technology

POWER IR LED

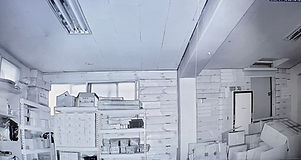

These Power IR LED gives a clear night vision.

The specification of LED is 850nm and gives 90 degree.

POWER IR LED

SNM Technology's POWER IR LED

Conventional IR LED

Conventional IR LED
