5MP IP Vandal Dome Camera

SDVBG-1G66E24T

NDAA/TAA ★★★★★★

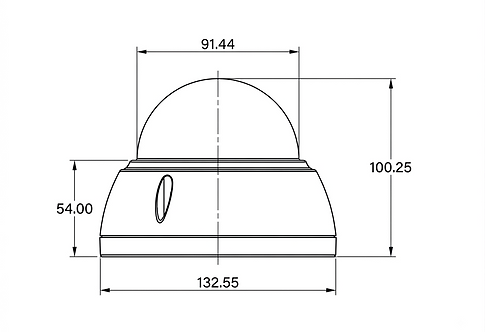

90pi Vandal Dome.png

OVERVIEW

This 5MP IP vandal dome camera features a Ø91mm transparent dome cover with a refined, low-reflective surface designed to reduce glare and maintain clear image quality. With a durable vandal-resistant housing and IP66-rated protection, it is built for reliable indoor and outdoor surveillance applications.



Equipped with an NDAA/TAA-compliant SoC and Sony IMX335 image sensor, the camera delivers high-resolution imaging performance. The 2.7–12mm motorized varifocal lens provides flexible focal length adjustment during installation.

With 24 high-performance IR LEDs, the camera offers excellent night vision and an extended infrared range for dependable low-light surveillance.

5MP
NDAA
TAA
H.265
IP Camera
WDR
Varifocal Lens
Vandal-proof
IP66 Waterproof
91 dome cover
ONVIF
POE

  • 5MP

  • Ø91mm Transparent Dome Cover

  • Aluminium Die Casting

  • 2.7–12mm Motorized Varifocal Lens

  • 24pcs IR LEDs

  • 1/2.8" Sony STARVIS CMOS Sensor - IMX335

  • Progressive Scan

  • Total Pixels: 2704 x 2104 (5.69MP)

  • Effective Pixels: 2592 x 1944 (5.03MP)

  • 1944p / 1080p @ 30 fps

  • Video Output: IP Network

  • 2DNR / 3DNR

  • DOL HDR (Digital Overlap High Dynamic Range)

  • Digital WDR

  • DC 12V & PoE​

  • Audio Input / Output (Optional)

  • Supports ONVIF

NOTE

  1. Easy Installation with any NVRs

  2. Option: 6–22mm Motorized Varifocal Lens
