2MP IP Miniature Camera

SMSMB-1E67E

NDAA/TAA ★★★★★★

IP Miniature Camera with Varifocal Lens

OVERVIEW

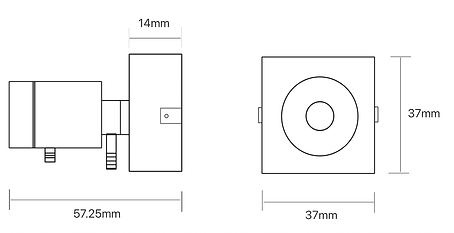

This 2MP IP miniature camera features a compact 37 × 37mm aluminum housing, making it ideal for installations where space is limited. The camera is equipped with a Sony IMX307 1/2.8" STARVIS CMOS sensor and an NDAA/TAA-compliant SoC, delivering clear and reliable Full HD video at up to 30 fps.

​

The 2.7–12mm manual varifocal lens provides flexible focal length adjustment for different viewing angles and installation requirements. With True WDR (SHDR), Digital WDR, DOL HDR, 3D noise reduction, H.265/H.264/MJPEG compression, PoE support, and ONVIF compatibility, the camera offers a versatile IP video solution for OEM/ODM applications, security systems, and space-constrained indoor installations.

2MP
NDAA
TAA
H.265
IP Camera
WDR
Varifocal Lens
ONVIF
PoE

REAL SHOTS

Get a closer look at the product from multiple angles.

  • 2MP

  • 37mm x 37mm Mini Housing

  • Aluminium Die Casting Case

  • 2.7–12mm Manual Varifocal Lens

  • 1/2.8" Sony STARVIS CMOS Sensor

  • Progressive Scan

  • Total Pixels: 1945 x 1109 (2.16MP)

  • Effective Pixels: 1920 x 1080 (2.07MP)

  • Full HD 1080p / HD 720p @ 30 fps

  • Video Output: IP Network

  • 2DNR / 3DNR

  • DOL HDR (Digital Overlap High Dynamic Range)

  • SHDR (True WDR) / Digital WDR @ 30 fps

  • DC 12V & PoE

  • Audio Input / Output (Optional)

  • Supports ONVIF

NOTE

  1. Easy Installation with any NVRs

  2. Various Lens Option
