SURVEILLANCE & MANUFACTURING in KOREA

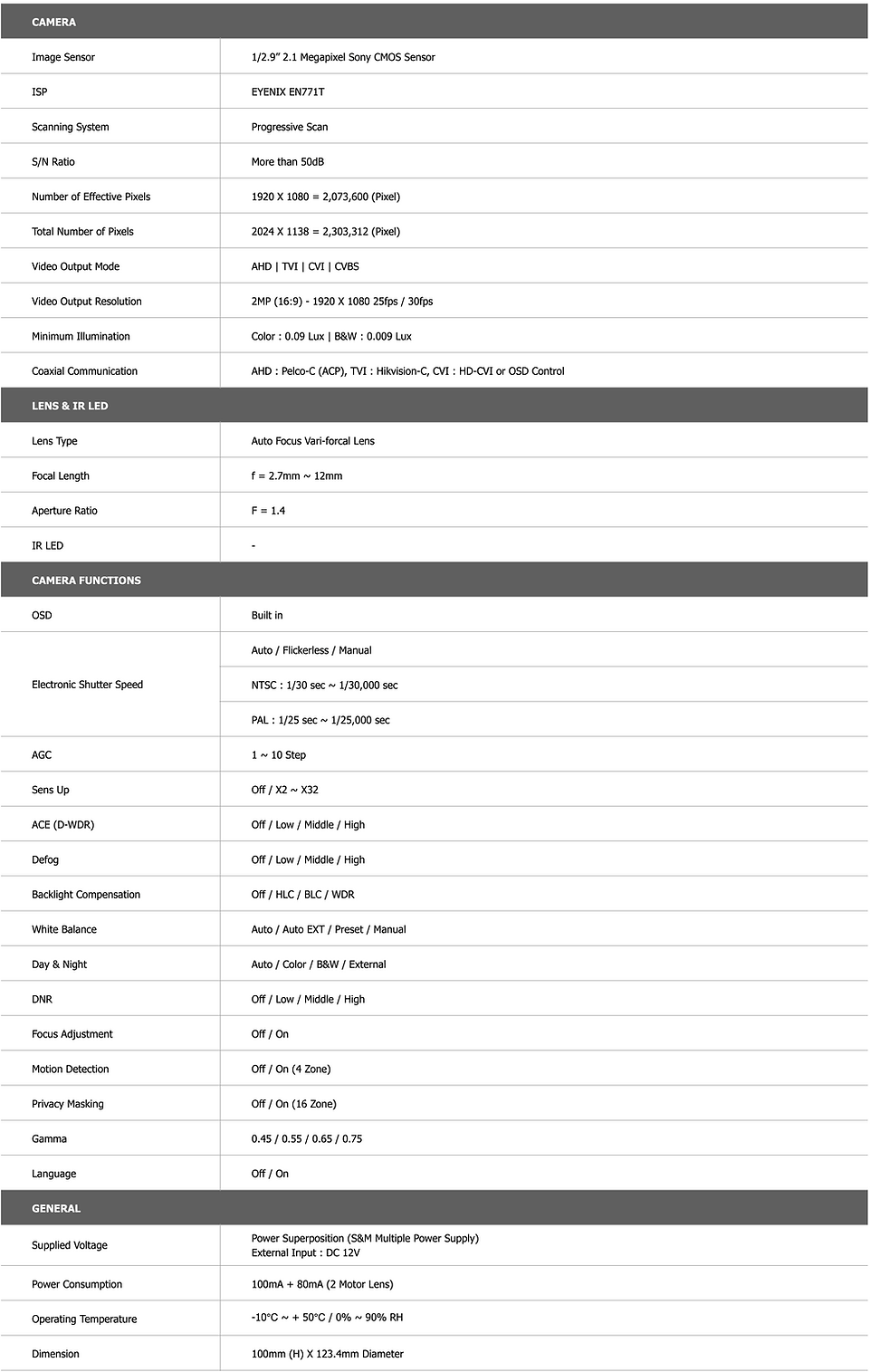

2MP | PoC INDOOR DOME CAMERA
SDPBA-1E71P
CAMERA TYPE
INDOOR DOME Camera
HOUSING
Plastic
SENSOR
1/2.9" Sony STARVIS CMOS Sensor (IMX307)
LENS TYPE
2.7mm ~ 12mm Motorized Zoom Lens
IR LED
-
POWER CONSUMPTION
100mA + 80mA (2 Motor Lens)
VIDEO OUTPUT
AHD TVI CVI CVBS
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.9" Sony STARVIS CMOS Sensor (IMX307)
EN771T
More than 50dB
Progressive Scan
1920 (H) X 1080 (V) 25p/30p | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
AHD : Pelco-C(ACP) | TVI : Hikvision-C | CVI : HD-CVI or OSD Control
Color : 0.09 Lux | B&W : 0.009 Lux
Power Superposition (S&M Multiple Power Supply)
External Input : DC12V +/- 10%
4MP | PoC INDOOR DOME CAMERA
SDPBA-1G81P
CAMERA TYPE
INDOOR DOME Camera
HOUSING
Plastic
SENSOR
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
LENS TYPE
2.7mm ~ 12mm Motorized Zoom Lens
IR LED
-
POWER CONSUMPTION
150mA + 80mA (2 Motor Lens)
VIDEO OUTPUT
AHD TVI CVI CVBS
Image Sensor
ISP
S/N Ratio
Scanning System
Number of Pixel
Video Output Mode
Coaxial Communication
Minimum Illumination
Power Source
1/2.8" Sony STARVIS CMOS Sensor (IMX335)
EN781
More than 50dB
Progressive Scan
2560 (H) X 1440 (V) 25p/30p | CVBS : 1280H
AHD | TVI | CVI | CVBS Selectable
AHD : Pelco-C(ACP) | TVI : Hikvision-C | CVI : HD-CVI or OSD Control
Color : 0.1 Lux | B&W : 0.01 Lux
Power Superposition (S&M Multiple Power Supply)
External Input : DC12V +/- 10%
